NSX-T - BGP Route Filtering and Route Aggregation

  • Writer: Hammad Alam
    Hammad Alam
  • Jul 3, 2019
  • 3 min read

Goal:

Keep the global route redistribution options enabled while selectively filter routes being advertised from NSX-T to Physical.


Setup Details

2 NSX-T ENs (5.5.5.2 and 5.5.5.3) in Active/Standby with eBGP configured to a Cumulus Border Leaf (5.5.5.1). Following are the routes being advertised by NSX to physical.


en1(tier0_sr)> get bgp neighbor 5.5.5.1 advertised-routes

Status flags: * - best, I - internal

Origin flags: I - IGP, E - EGP, ! - incomplete

Network Next Hop LocPrf MED AS Path

2.2.2.0/29 5.5.5.2 0 0 65300 !

2.2.2.8/29 5.5.5.2 0 0 65300 !

2.2.2.64/27 5.5.5.2 0 0 65300 !

2.3.0.0/24 5.5.5.2 0 0 65300 !

2.4.0.0/24 5.5.5.2 0 0 65300 !

23.23.23.10/32 5.5.5.2 0 0 65300 !

23.23.23.201/32 5.5.5.2 0 0 65300 !

23.23.23.202/32 5.5.5.2 0 0 65300 !

23.23.23.203/32 5.5.5.2 0 0 65300 !

23.23.23.204/32 5.5.5.2 0 0 65300 !

23.23.23.205/32 5.5.5.2 0 0 65300 !

23.23.23.206/32 5.5.5.2 0 0 65300 !

23.23.23.207/32 5.5.5.2 0 0 65300 !

23.23.23.208/32 5.5.5.2 0 0 65300 !

172.16.0.0/24 5.5.5.2 0 0 65300 !

172.16.1.0/24 5.5.5.2 0 0 65300 !

172.16.2.0/24 5.5.5.2 0 0 65300 !

172.16.3.0/24 5.5.5.2 0 0 65300 !

172.16.4.0/24 5.5.5.2 0 0 65300 !


  • 2.2.2.x, 2.3.x.x and 2.4.x.x are networks on T1 router that were manually created. I want these to be advertised out

  • 23.23.23.x are the LB, SNAT and DNAT IPs that I want to be advertised

  • 172.16.x.x are my Kubernetes POD networks that I DO NOT want to be advertised.

  • In NSX IPAM, I have provided a block of 172.16.0.0/16 from which /24 subnets will be automatically provisioned for each Kubernetes Namespace.

  • I do not want to manually deny each subnet but cover the whole /16 to be not advertised out.

Solution

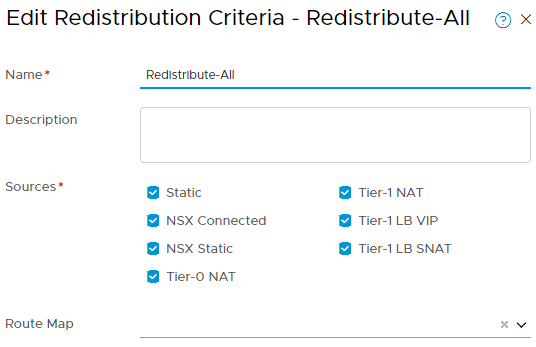

a. Enable the Global option at the T0

ree


b. Create IP Prefix lists.

You need one IP Prefix list for the 172.16.0.0/16 networks and one for ANY network



ree

ree

ree

c. Create a Route Map with the deny Prefix list first followed by the ANY Permit


ree

d. Last step is to go to the BGP Neighbor → Edit → Address Families and apply the Route Map on the Out Route Map


ree

Lets look at the routes being advertised again:


en1(tier0_sr)> get bgp neighbor 5.5.5.1 advertised-routes
Status flags: * - best, I - internal
Origin flags: I - IGP, E - EGP, ! - incomplete
   Network             Next Hop        LocPrf   MED    AS Path
   2.2.2.0/29          5.5.5.2         0        0      65300 !
   2.2.2.8/29          5.5.5.2         0        0      65300 !
   2.2.2.64/27         5.5.5.2         0        0      65300 !
   2.3.0.0/24          5.5.5.2         0        0      65300 !
   2.4.0.0/24          5.5.5.2         0        0      65300 !
   23.23.23.10/32      5.5.5.2         0        0      65300 !
   23.23.23.201/32     5.5.5.2         0        0      65300 !
   23.23.23.202/32     5.5.5.2         0        0      65300 !
   23.23.23.203/32     5.5.5.2         0        0      65300 !
   23.23.23.204/32     5.5.5.2         0        0      65300 !
   23.23.23.205/32     5.5.5.2         0        0      65300 !
   23.23.23.206/32     5.5.5.2         0        0      65300 !
   23.23.23.207/32     5.5.5.2         0        0      65300 !
   23.23.23.208/32     5.5.5.2         0        0      65300 !

Added Step with Route Aggregation

As you can see above that 23.23.23.x is advertising /32s. The routing table can be further optimized by sending a summary for this route.

Navigate to the BGP Config and hit the Global Edit Button


ree

Add the Prefix that you want to advertise with Summary Only set to Yes


ree

en1> vrf 11
en1(tier0_sr)>  get bgp neighbor 5.5.5.1 advertised-routes
Status flags: * - best, I - internal
Origin flags: I - IGP, E - EGP, ! - incomplete
   Network             Next Hop        LocPrf   MED    AS Path
   2.2.2.0/29          5.5.5.2         0        0      65300 !
   2.2.2.8/29          5.5.5.2         0        0      65300 !
   2.2.2.64/27         5.5.5.2         0        0      65300 !
   2.3.0.0/24          5.5.5.2         0        0      65300 !
   2.4.0.0/24          5.5.5.2         0        0      65300 !
   23.23.23.0/24       5.5.5.2         0        0      65300 !

As you can see that now only 23.23.23.0/24 is being advertised out.



VMware Blogs: https://blogs.vmware.com/customer-experience-and-success/feeds/hammad-alam
